本条数据采用的设备为keyence公司生产的VHX-600E型超景深显微镜，放大倍数为20x，观察对象为小尺寸试件的配合部位的表面宏观形貌，主要的部位有轴径的过盈配合表面、轴肩接触表面以及轴套的配合表面。通过观察可以确定试件在不同旋转次数下的表面损伤情况，确定损伤的部位以便进一步观测。

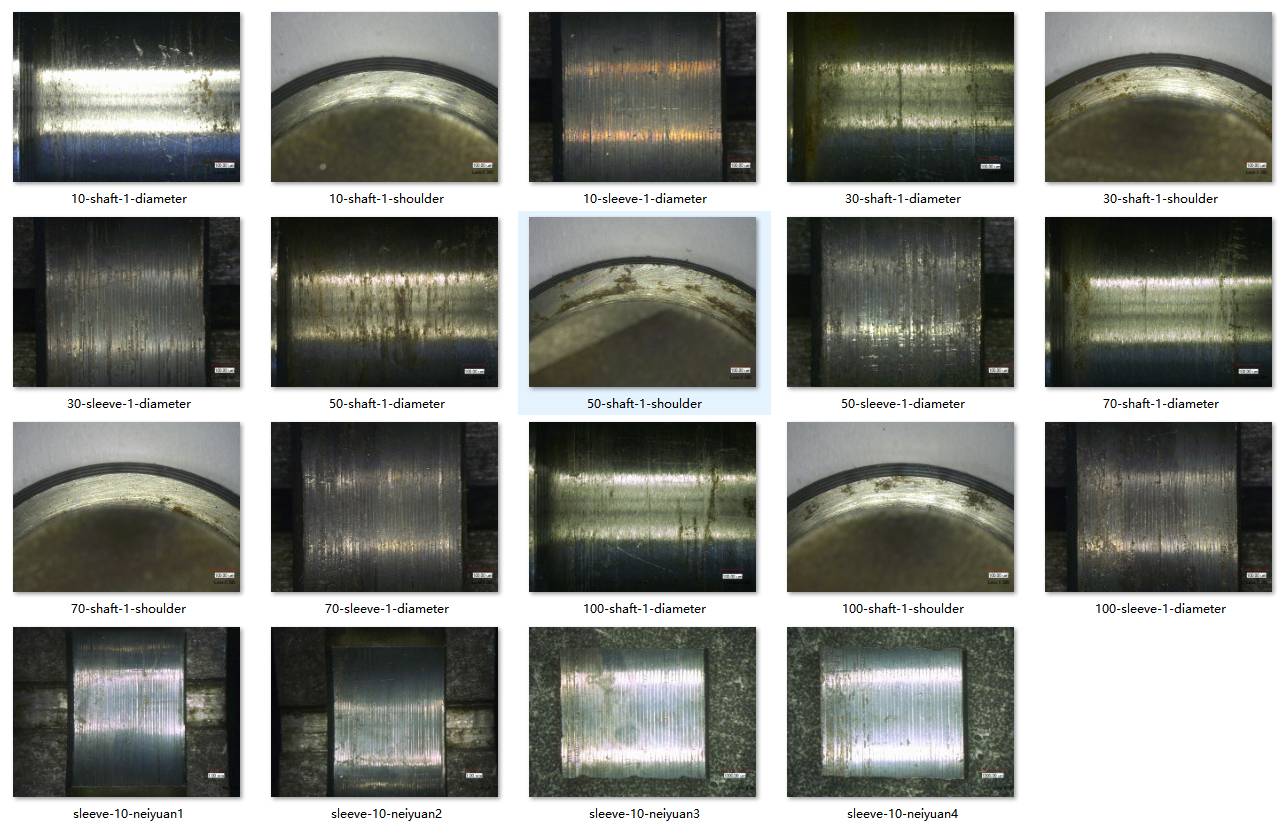

10：轴旋转2×10⁵次后不同部位的损伤照片

30：轴旋转2×3×10⁵次后不同部位的损伤照片

50：轴旋转2×5×10⁵次后不同部位的损伤照片

70：轴旋转2×7×10⁵次后不同部位的损伤照片

100：轴旋转2×10×10⁵次后不同部位的损伤照片

The equipment used for this data is the VHX-600E ultra-depth of field microscope produced by keyence Company with a magnification of 20x. The observation objects are the surface macro morphology of the fitting parts of small-size specimens, the main parts include the interference fitting surface of the shaft diameter, the contact surface of the shaft shoulder and the fitting surface of the shaft sleeve. Through observation, the surface damage of the specimen under different rotation times can be determined, and the damaged part can be determined for further observation.

10: Damage photos of different parts after shaft rotation 2×105 times

30: Photos of damage in different parts after shaft rotation 2×3×105 times

50: Photos of damage in different parts after shaft rotation 2×5×105 times

70: Photos of damage in different parts after shaft rotation 2×7×105 times

100: Photos of damage in different parts after shaft rotation 2×10×105 times
