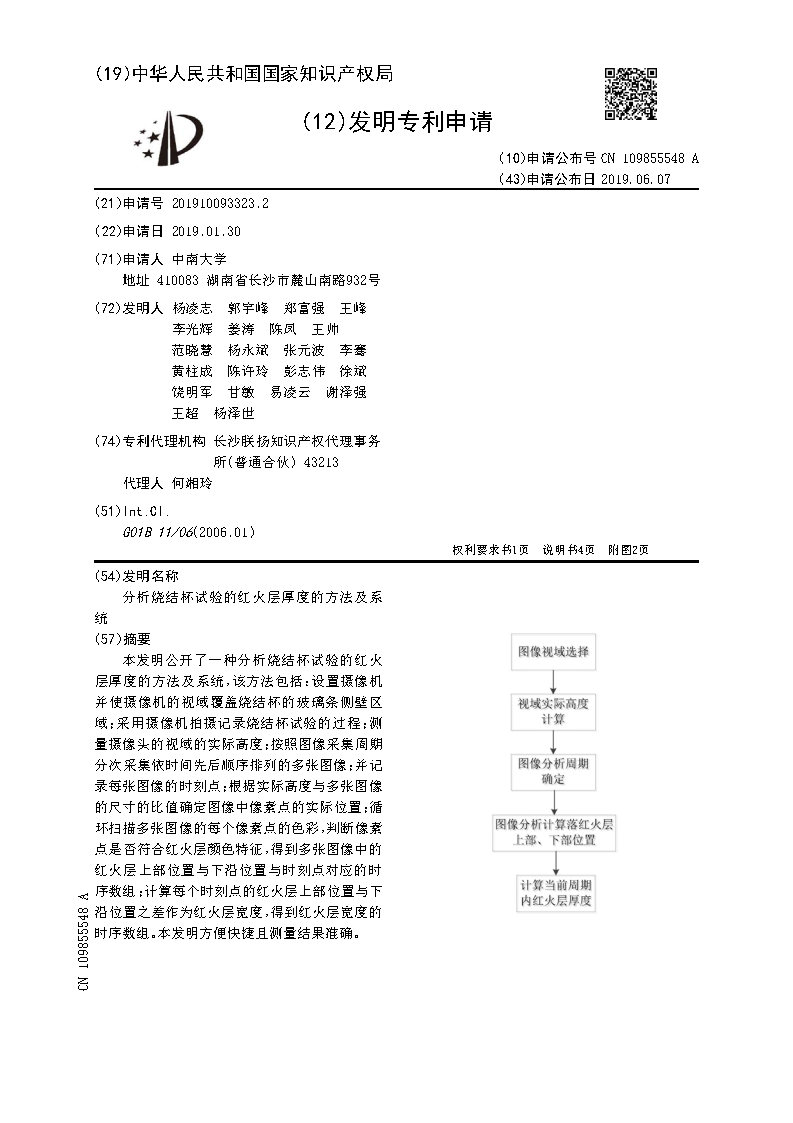

本发明公开了一种分析烧结杯试验的红火层厚度的方法及系统，该方法包括：设置摄像机并使摄像机的视域覆盖烧结杯的玻璃条侧壁区域；采用摄像机拍摄记录烧结杯试验的过程；测量摄像头的视域的实际高度；按照图像采集周期分次采集依时间先后顺序排列的多张图像；并记录每张图像的时刻点；根据实际高度与多张图像的尺寸的比值确定图像中像素点的实际位置；循环扫描多张图像的每个像素点的色彩，判断像素点是否符合红火层颜色特征，得到多张图像中的红火层上部位置与下沿位置与时刻点对应的时序数组；计算每个时刻点的红火层上部位置与下沿位置之差作为红火层宽度，得到红火层宽度的时序数组。本发明方便快捷且测量结果准确。

The invention discloses a method and system for analyzing the red fire layer thickness of a sintering cup test. The method comprises: setting a camera and making the field of view of the camera cover the side wall area of the glass strip of the sintering cup; The process of sintering cup test is recorded by camera; Measure the actual height of the field of view of the camera; Collecting a plurality of images arranged in chronological order according to the image acquisition cycle; And record the time point of each image; Determining the actual position of pixels in the image according to the ratio of the actual height to the size of multiple images; Circularly scan the color of each pixel of multiple images, judge whether the pixel conforms to the color characteristics of the red fire layer, and obtain the timing array corresponding to the upper position and lower edge position of the red fire layer and the time point in multiple images; The difference between the upper position and the lower position of the red fire layer at each time point is calculated as the red fire layer width, and the time series array of the red fire layer width is obtained. The invention is convenient and fast, and the measurement result is accurate.
