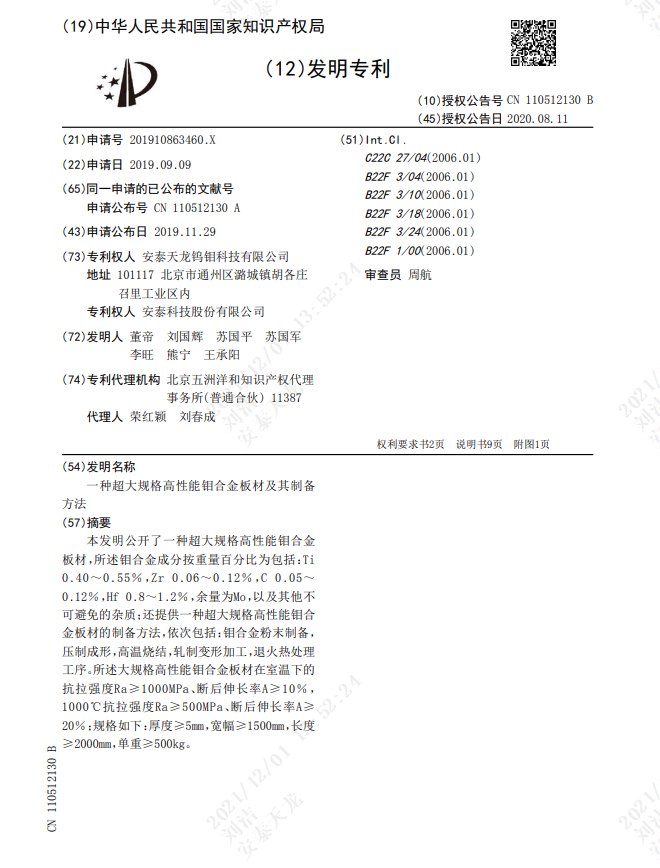

本发明公开了一种超大规格高性能钼合金板材,所述钼合金成分按重量百分比为包括:Ti0 .40~0 .55% ,Zr 0 .06~0 .12% ,C 0 .05~0 .12%,Hf 0 .8~1 .2%,余量为Mo,以及其他不可避免的杂质;还提供一种超大规格高性能钼合金板材的制备方法,依次包括:钼合金粉末制备,压制成形,高温烧结,轧制变形加工,退火热处理工序。所述大规格高性能钼合金板材在室温下的抗拉强度Ra≥1000MPa、断后伸长率A≥10% ,1000℃抗拉强度Ra≥500MPa、断后伸长率A≥20%;规格如下:厚度≥5mm,宽幅≥1500mm,长度≥2000mm,单重≥500kg。
The invention discloses an oversized high-performance tantalum alloy sheet, the components of which include: Ti0.40 to 0.55%, Zr0.06 to 0.12%, C0.05 to 0.12% by weight. Hf0.8 to 1.2%, with a margin of Mo, and other unavoidable impurities, also provides an oversized high-performance tantalum alloy plate preparation method, including: vanadium alloy powder preparation, pressing forming, high temperature sintering, rolling deformation processing, annealing heat treatment process. The large-size high-performance tantalum alloy sheet at room temperature tensile strength Ra≥1000MPa, after the break elongation rate A ≥ 10%, 1000 degrees C tensile strength Ra≥500MPa After the break elongation rate of A ≥ 20%, specifications are as follows: thickness ≥ 5mm, wide ≥ 1500mm, length ≥ 2000mm, single weight ≥ 500kg.
