图 2(a) 表明铸态和 WR 合金主要由 Zn 和 β-LiZn4 相组成。对于这两个相，随机取向粉末的最强峰是 (01-11)。然而，在 WR 状态下，它们都表现出最强的 (0002) 峰，表明轧制 HCP 金属具有典型的基础织构，如先前在镁合金和其他锌合金中得到验证。

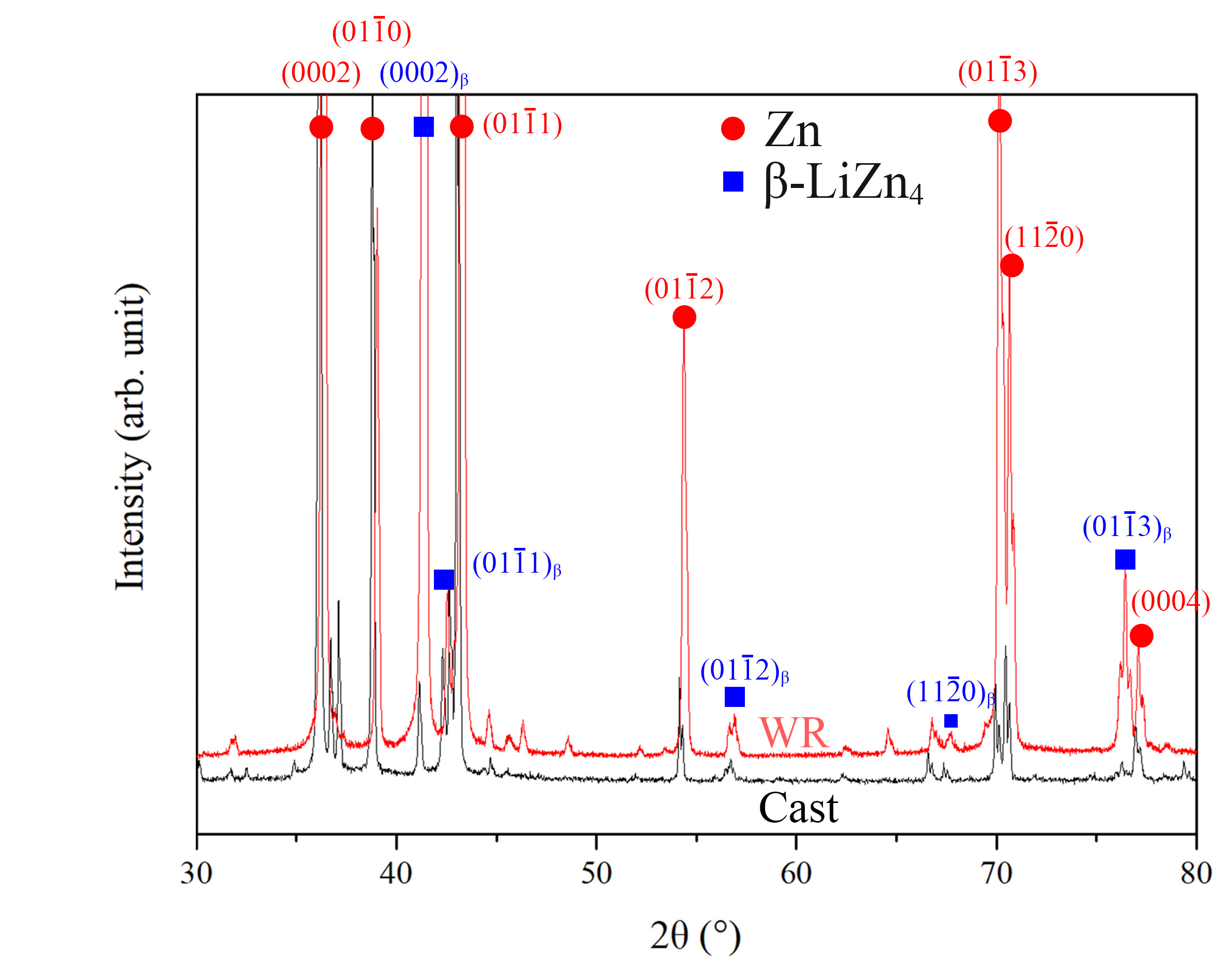

Fig. 2(a) shows that both the as-cast and the WR alloys are mainly composed of Zn andβ-LiZn₄ phases. For both the phases, the strongest peak of randomly orientated powders is that of (01–11).However, in the WR state, they both exhibit the strongest peak of (0002), indicating a basal texture typical for rolled HCP metals, as verified previously in Mg alloys and other Zn alloys.
